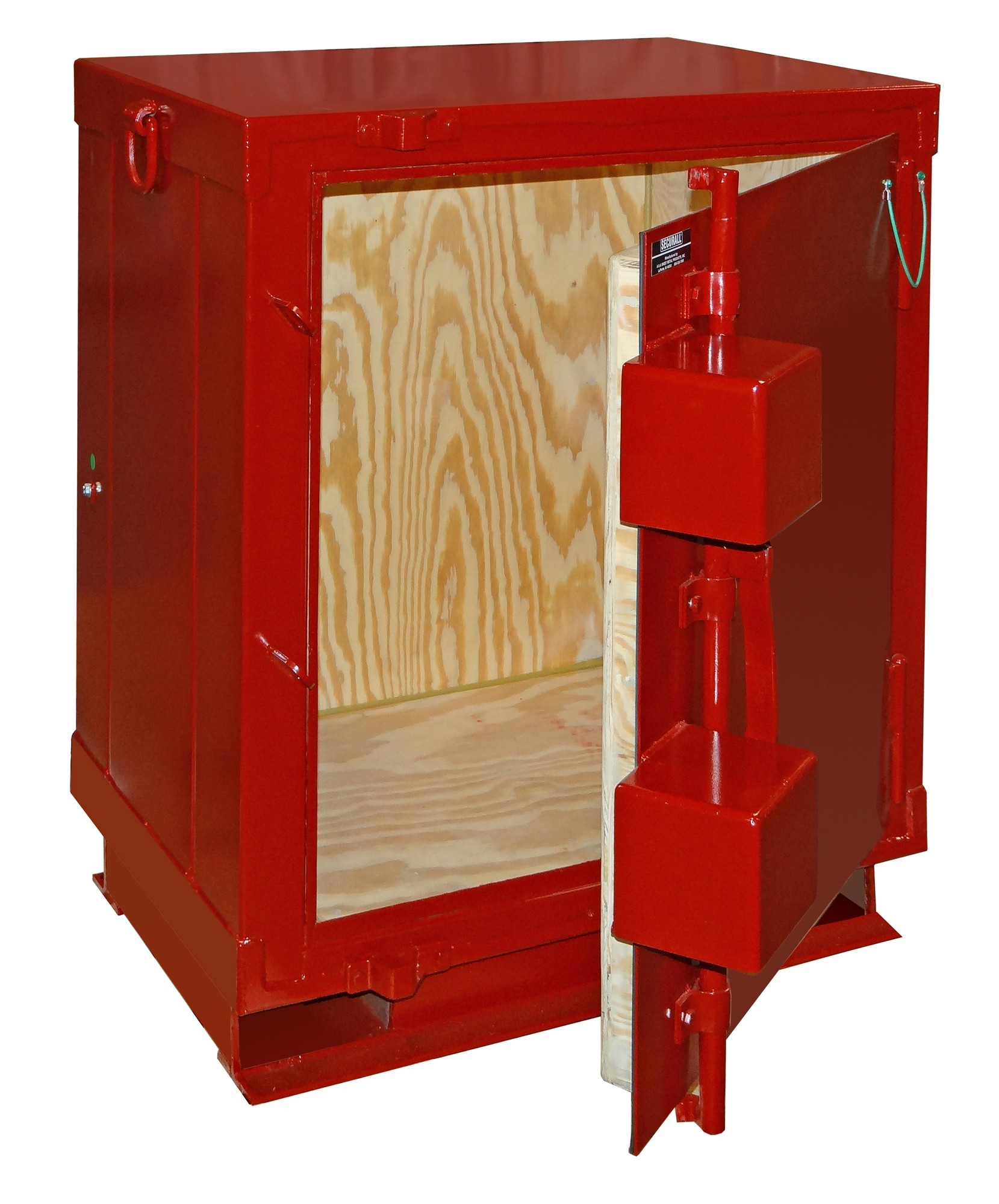

M100 Type 2 Explosive Storage Magazine for Indoor Storage
Type 2 Magazines are made for the storage of High Explosives and are made for indoor or outdoor storage placement. Per ATF regulations an indoor magazine may not hold more than 50 Lbs. of explosive materials and outdoor magazines must be built to a bullet resistant design.
Our Explosive Storage Magazines are portable and can be placed in most locations with a flat surface. These magazines are built for turn-key installation which also allows for easy relocation if needed.
Explosive Storage Magazine
Dimension 36" H x 36" W x 30" D
Approx. Ship. Wt. 1395 Lbs.
Door Style - Single Door
Standard Features:
- Type 2 Indoor w/ casters
- Deduct $250 if you do not want casters
- Magazine is designed to meet Title 27, Code of Federal Regulations 555, Subpart K for the design of Type 2 Indoor, Type 4 Indoor and Type 4 Outdoor Explosive Storage Magazines.
- Magazine constructed with double wall, welded construction with 3” airspace throughout.
- Exterior walls made of 12-gauge, formed Galvanized Steel. Roof is 12-gauge.
- Interior of structure lined with 1/2" Plywood . All spark-producing material is covered or sealed.
- Door: Exterior Mounted Cam Lock (included) (2) Hooded Padlock Hasps at 45° Angle. Door made with a 1” overlap on all sides.
- Door Panel(s) grounded to wall face.
- Welded-On Lifting Lugs.
- Support with Fork Channels.
- Finish is a two-part chemical resistant aliphatic polyurethane.
Details
Type 2 Magazines are made for the storage of High Explosives and are made for indoor or outdoor storage placement. Per ATF regulations an indoor magazine may not hold more than 50 Lbs. of explosive materials and outdoor magazines must be built to a bullet resistant design.
Our Explosive Storage Magazines are portable and can be placed in most locations with a flat surface. These magazines are built for turn-key installation which also allows for easy relocation if needed.
Bullet Rated Magazines are quoted with (4) walls, including the door, to be Bullet Resistant will require a pre-approved variance by your local ATF field office.
Bullet Resistant Roof and Floor are available as additional options.
Type 2 Outdoor Magazine Bullet Resistant Design with Top, Floor, Sides and Doors Meets or exceeds ATF specs 27 CFR 555.11. (Pg. 75 ATF Ruling 76-18 (b)).
