DUPLEX-44x27x10-T2-OUT - Type 2 Outdoor Bullet Resistant Storage Magazine
Manufactured to meet or exceed government specifications established by the Bureau of Alcohol, Tobacco, and Firearms (27 CFR 555.208 “Construction of Type II Magazines”), as well as OSHA, MSHA, and IME standards. Built for durability, safety, and compliance. Designed for secure outdoor storage of explosives and detonators, this bullet-resistant magazine provides unmatched protection against fire, theft, and environmental hazards.
Key Features: Duplex Design for expanded storage space. Assembled on-site by factory trained installers. Available accessories include lighting, HVAC, electrical. ¼″ hot-rolled steel plate housing; hardwood lining with ½″ plywood top; forklift/lift-ring compatible skids; bullet-, fire-, and theft-resistant; optional lightning grounding kit; BATF-approved locks.
Dimensions: Exterior – 44' L × 27' W × 10' H Weight – 113,880 lbs
Construction
- Housing – Exterior and doors are constructed of ¼″ hot rolled steel plate sourced through American producers.
- Body of the magazine features continuously welded steel construction.
- Standard designed recessed door provides increased security versus a flat plate closure.
- The formed steel doors provide greater strength. Drip protection is standard.
- Pad – Concrete pad advised to exceed external dimensions by 1ft on all sides. Concrete design by others.
- Lining – Interior is finished with optional thicknesses (minimum of 3″ to 4″) of hardwood lining with the first inner layer securely bolted in place; the final build-up is then covered with 1/8″ luan overlay.
- Hinges & Hasps – Hinges are welded to the door and exterior of the magazine in compliance with ATF directives. All hinges are greased and standard with zerk fittings. Hasps are protected with formed ¼″ steel hoods that prevent sawing or lever action on locks, hasps, and staples per ATF guidelines. Steel hood covers are framed with ¼″ angle iron for additional protection.
- Ventilation – Vent covers on the exterior are constructed with ¼″ steel plate. Wall vents are double screened with expanded metal and wire mesh bug screens. On the interior, stand-off strips are placed over the liner to prevent packing of explosives against the wall and obstructing ventilation.
- Movement / Positioning – Openings at the front and rear ends of the skids, along with lift rings welded securely to the top, enable easy movement and attachment of chains or cables.
- Lightning Protection – Grounding kit available as an option.
- Locks – BATF-approved locks available, keyed as required.
- General – All outdoor magazines are bullet-resistant, fire-resistant, theft-resistant, and constructed to prevent direct contact with the ground.
- Grounding Strap – Attached between the door and housing to protect against electrostatic discharge.
- Available Options Include - Grounding Kit, ATF Approved Padlocks, Anchor Brackets, Additional Door, LED Lighting, 120/240 volt 100 Amp Power, R10 Insulation, HVAC with Dehumidification

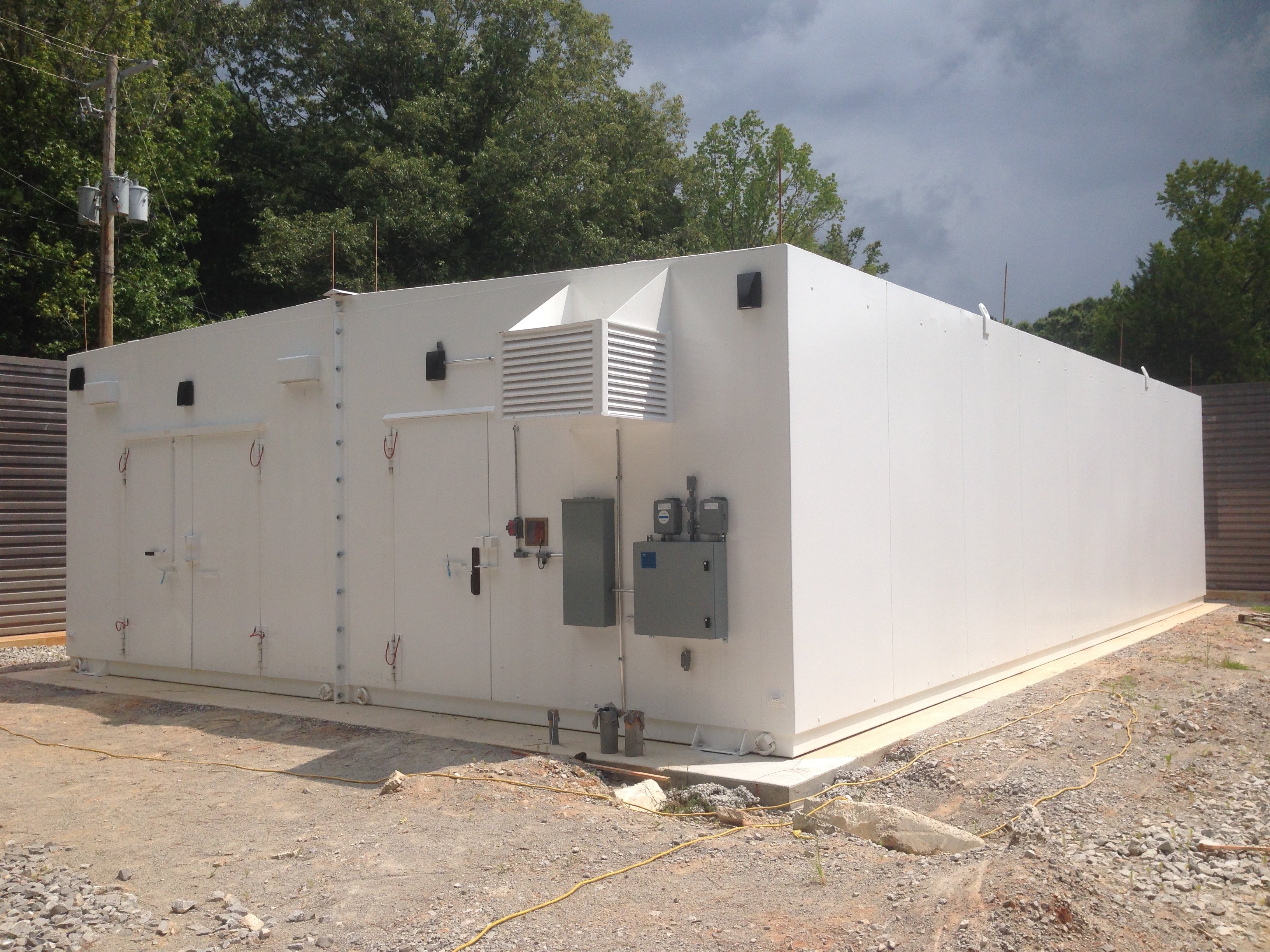

Type 2 Outdoor Bullet Resistant Storage DUPLEX Magazine
44' L × 27' W × 10' H - 113,880 lbs
Details
Outdoor Magazines provide safe and secure Type 2 storage of industrial explosives. They are custom manufactured to meet your specific job requirements and are available in sizes ranging from 8 sq. ft. to 5,000 sq. ft. with a wide range of configurations. Our proprietary vault-like construction provides high security protection wherever the magazine is located.
Outdoor magazines are manufactured with continuously welded 1/4″ steel. They have proven to withstand extreme climates, repeated relocations and last for decades with little or no maintenance.
