Self-Contained Secure Evidence Storage Enclosures

Self-Contained Secure Evidence Storage Enclosures

Be the first to review this product

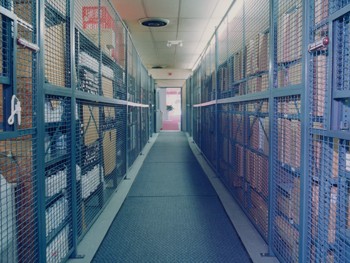

Evidence Enclosures and Secure Storage Cages are great for securing and storing evidence and other items in plain sight, while keeping them locked, secure and under access control by authorized personnel only.

Turnkey or custom design, build and installation services available.

Optional Service windows can be added to Evidence Enlcosures and secured storage areas for controlled distribution of stored evidence and other items.

Availability: In stock

  • Specifications
  • Details
  • Product Description
  • Additional Information
  • Reviews
  • Product Tags

Police, DEA and DHS Evidence Storage Cages and High Security Enclosures

    • Panels
    • Shall be 10 gauge steel wire crimped and woven in to 2" x 1" opening rectangular mesh, securely welded into a frame of 1 1/4" x 1 1/4" x 1/8" steel angle factory punched with 7/8" x 7/16" slotted holes to accept 3/8" mounting hardware. Panels four to six feet wide shall have one 1/4" x 3/4" flat stiffener, wider panels receive two 1/4" x 3/4" stiffeners. All panels shall be fastened to posts with 3/8" x 3" plated bolts and nuts.


    • Hinged Doors

      Shall be constructed of the same materials as the panels with two 1/4" x 3/4" horizontal stiffeners across the width, and two diagonal 1/4" x 3/4" stiffeners from center to the corner. Hinged doors shall be equipped with padlock lugs (cylinder lock optional), three 4" x 4" spun pin hinges, and pick plate/slam bar assembly.


    • Sliding Doors

      Shall be constructed of the same materials as the panels with two 1/4" x 3/4" horizontal stiffeners across the width, and two vertical 1/4" x 3/4" stiffeners from center to top or bottom. Sliding doors shall be equipped with two 4 wheel trolley trucks, 1 7/8" x 2 3/8"door track, pad lock lugs (cylinder lock optional), and door keeper assembly.


    • Posts

      Shall be made of 2" x 2" x 14 gauge steel tubing. Base plates of 2" x 7" x 1/4" steel flat with two 7/16" round holes for anchoring, shall be welded to each tube. Posts are factory drilled with 1/2" holes to accept hardware for mounting panels.


    • Hardware

      Shall be 3/8" standard thread grade two plated nuts and bolts. Floor anchors are 3/8" wedge type-provided.


  • Finish

    Non-plated parts receive one coat of gray acrylic enamel. Touch up paint included with each shipment.

Stock Panels to Create Evidence Partition Rooms or Evidence Cages

  • Available in one foot increments from 1' to 10' wide, and in heights of 4' and 5'.


  • Section off existing evidence or secured storagerooms, or create self-contained secured evidence storage enclosures with a variety of available security or self-locking doors, and access control lock options.

Security to the Max

  • Access control to your evidence and property while keeping it in plain sight with an open but secure wire partition panel design.


  • Twenty standard sized panels 4'-0" or 5'-0" high, by 1'-0" to 10'-0" wide.
  • Stack two or more panels between posts to reach your wall height.
  • Standard size panels work in ceilings and walls.
  • Custom size panels and special heights available.
  • Hinged, double hinged, sliding, and vertical rise doors available.
  • Sliding doors have patented tamper resistant latch mechanism.
  • Angle frame design gives installer clear access to hardware, speeding installation.
  • Assembly hardware is inaccessible from the secured side of the partition.
  • Standard 3/8" mounting hardware is the heaviest in the industry.
  • Heavy duty options available.
  • Panels may be ordered with any mesh, expanded metal, sheet metal, or clear Lexan.
  • Let us help you design, build and install a Police Evidence Cage or Secure evidence room with evidence lockers


Self-Contained Secure Evidence Enclosures are built from WireCrafters Style 840 partition panel systems. Best for building secured rooms in existing buildings and facilities or you can have us design, build and install self contained secured storage enclosures. Evidence and property rooms protected by a WireCrafters wire partition system allow you to bring in goods knowing that they will be heavily secured and protected from unauthorized access.
