Protect Visitors & Control Building Access

Driver Access and Facility Access Cages are a simple, cost effective way of controlling access to distribution centers, buildings, factory floors and other facilities.

Optional Service Windows

  • Allow for Easy Transactions & transfers of documents, papers, credentials and more

Optional Benches for Waiting Visitors

  • Benches provide seating inside of the secured area. Convienent for drivers or personnel waiting upon arrival.

Turnkey or custom design, build and installation to meet your floorplan and footprint.

Availability: In stock

  • Specifications
  • Details
  • Product Description
  • Additional Information
  • Reviews
  • Product Tags
  • Full width push bar for exit from warehouse side.
  • Service window with shelf for paperwork pass through.
  • Coded push button entry lock available.
  • Remote controlled electric latch release available.
  • Wall and ceiling panels constructed of 10 gauge wire, 2" x 1" rectangular opening.
  • Steel support posts 2" square.
  • Posts have welded on base plate for lagging to the floor.
  • Posts are set no more than ten feet apart.
  • Walls have minimum 1 1/2" horizontal reinforcement at least every 60 inches.
    • Woven Wire Panels

      Ten widths, 1' to 10' in one-foot increments. Standard panel height is 4'-0". Full height partition walls are built by stacking two panels between posts. Mesh: 10-gauge wire woven into 2" x 1" rectangular openings. Frame 1 1/4" x 1 1/4" x 1/8" steel angle. Custom sized panels are available. Alternate meshes are also available.
    • Panels

      Shall be 10 gauge steel wire crimped and woven in to 2" x 1" opening rectangular mesh, securely welded into a frame of 1 1/4" x 1 1/4" x 1/8" steel angle factory punched with 7/8" x 7/16" slotted holes to accept 3/8" mounting hardware. Panels four to six feet wide shall have one 1/4" x 3/4" flat stiffener, wider panels receive two 1/4" x 3/4" stiffeners. All panels shall be fastened to posts with 3/8" x 3" plated bolts and nuts.


    • Hinged Doors

      Shall be constructed of the same materials as the panels with two 1/4" x 3/4" horizontal stiffeners across the width, and two diagonal 1/4" x 3/4" stiffeners from center to the corner. Hinged doors shall be equipped with padlock lugs (cylinder lock optional), three 4" x 4" spun pin hinges, and pick plate/slam bar assembly.


    • Sliding Doors

      Shall be constructed of the same materials as the panels with two 1/4" x 3/4" horizontal stiffeners across the width, and two vertical 1/4" x 3/4" stiffeners from center to top or bottom. Sliding doors shall be equipped with two 4 wheel trolley trucks, 1 7/8" x 2 3/8"door track, pad lock lugs (cylinder lock optional), and door keeper assembly.


    • Posts

      Shall be made of 2" x 2" x 14 gauge steel tubing. Base plates of 2" x 7" x 1/4" steel flat with two 7/16" round holes for anchoring, shall be welded to each tube. Posts are factory drilled with 1/2" holes to accept hardware for mounting panels.


    • Hardware

      Shall be 3/8" standard thread grade two plated nuts and bolts. Floor anchors are 3/8" wedge type-provided.


  • Finish

    Non-plated parts receive one coat of gray acrylic enamel. Optional powder coated finishes and custom colors available.

Facility & Building Access Cage Configurations

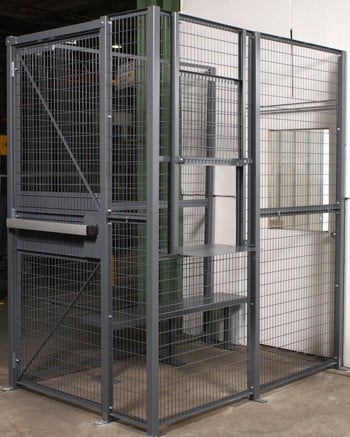

Driver Access Cages, AKA Man Traps, are typically constructed as three sided cages that adjoin to an outside wall with an entry door of your facility. These driver access cages are made of our Style 840 Wire Partition System. Heavy 10 gauge wire woven into a 2" x 1" rectangular mesh is strong enough for any industrial security cage requirement. The size of these building access cages vary from six by six up to eight by eight. Because WireCrafters has panels in one foot increments, any size cage can be configured.

Failing to restrict building access is a huge potential risk for accidents in your facility.

Typically these driver cages are furnished with a service window with a shelf to provide the driver a counter to sign and pick up their paperwork. The access cage also has a pedestrian hinge door for access.


Keep Your Facility Safe & Secure with access control cages and wire partition panels.
