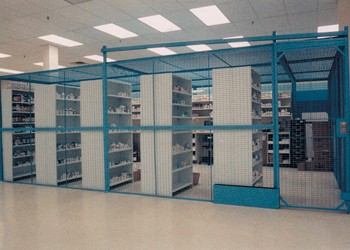

Three-Wall DEA Approved Drug Storage Cage for a Secure Storage Area

Three-Wall DEA Approved Drug Storage Cage for a Secure Storage Area

Be the first to review this product

Get pricing on a three-walled secure storage area to design & build a DEA Approved Drug Storage Cage. Best used for storage of Schedule III, IV and V controlled substances, these DEA Approved drug storage cages are available in standard or custom built sizes. Call for a free consultation or send us your floor plan and layout and we can help you design / build a drug storage cage for your facility requirements.
  • Specifications
  • Details
  • Product Description
  • Additional Information
  • Reviews
  • Product Tags

DEA Approved Drug Storage Cage with Three Wall Partitions designed, built and installed to DEA Specs for Physical Security and Access Control

    • Partition Panels

      Shall be 10gauge steel wire crimped and woven in to 2" x 1" opening rectangular mesh, securely welded into a frame of 1 1/4" x 1 1/4" x 1/8" steel angle factory punched with 7/8" x 7/16" slotted holes to accept 3/8" mounting hardware. Panels four to six feet wide shall have one 1/4" x 3/4" flat stiffener, wider panels receive two 1/4" x 3/4" stiffeners. All panels shall be fastened to posts with 3/8" x 3" plated bolts and nuts.



    • Hinged Doors

      Hinged shall be constructed of the same materials as the panels with two 1/4" x 3/4" horizontal stiffeners across the width, and two diagonal 1/4" x 3/4" stiffeners from center to the corner. Hinged doors shall be equipped with padlock lugs (cylinder lock optional), three 4" x 4" spun pin hinges, and pick plate/slam bar assembly. Doors are self-closing and self-locking.



    • Sliding Doors

      Sliding shall be constructed of the same materials as the panels with two 1/4" x 3/4" horizontal stiffeners across the width, and two vertical 1/4" x 3/4" stiffeners from center to top or bottom. Sliding doors shall be equipped with two 4 wheel trolley trucks, 1 7/8"2 3/8" door track, pad lock lugs (cylinder lock optional), and door keeper assembly. Doors are self-closing and self-locking.



    • Posts

      Shall be made of 2" x 2" x 14 gauge steel tubing. Base plates of 2" x 7" x 1/4" steel flat with two 7/16" round holes for anchoring, shall be welded to each tube. Posts are factory drilled with 1/2" holes to accept hardware for mounting panels.



    • Hardware

      Shall be 3/8" standard thread grade two plated nuts and bolts. Floor anchors are 3/8" wedge type-provided.



  • Finish

    Non-plated parts receive one coat of gray acrylic enamel. Touch up paint included with each shipment. Special / custom finishes available including powder coated & custom colors.

DEA Approved Drug Storage Cages and Secure Access Control Storage Areas

Per 21 CFR 1301.72, the three-wall access control storage areas for Schedule III, Schedule IV and Schedule V controlled substances require a high level of security. These installations have the following notable features:

  • Self closing, self locking doors.
  • Standard or custom locking options for access control available
  • Wall and ceiling panels constructed of 10 gauge wire.
  • Steel support posts 2" square.
  • Posts have welded on base plates for lagging to the floor.
  • Posts are set no more than ten feet apart.
  • Walls have minimum 1 1/2" horizontal reinforcement at least every 60 inches.
  • Standard mesh has 2" x 1" rectangular opening.
  • Partition Panels mount flush to floor.
  • Heavy 3/8" hardware non-accessible from the exterior.
  • Panels stack to any height to work with your facility or floor plan layout.
  • Clear spanned ceilings up to 35' across.

Details

Three Wall partitions can be used to design and build a secure drug storage area for controlled substances. Available in standard or custom height and lengths. DEA approved drug cages are in compliance to meet physical security requirements of storage areas.

Additional Information

Brand WireCrafters
