• Partition Panels

  Shall be 10gauge steel wire crimped and woven in to 2" x 1" opening rectangular mesh, securely welded into a frame of 1 1/4" x 1 1/4" x 1/8" steel angle factory punched with 7/8" x 7/16" slotted holes to accept 3/8" mounting hardware. Panels four to six feet wide shall have one 1/4" x 3/4" flat stiffener, wider panels receive two 1/4" x 3/4" stiffeners. All panels shall be fastened to posts with 3/8" x 3" plated bolts and nuts.

• Hinged Doors

  Hinged shall be constructed of the same materials as the panels with two 1/4" x 3/4" horizontal stiffeners across the width, and two diagonal 1/4" x 3/4" stiffeners from center to the corner. Hinged doors shall be equipped with padlock lugs (cylinder lock optional), three 4" x 4" spun pin hinges, and pick plate/slam bar assembly. Doors are self-closing and self-locking.

• Sliding Doors

  Sliding shall be constructed of the same materials as the panels with two 1/4" x 3/4" horizontal stiffeners across the width, and two vertical 1/4" x 3/4" stiffeners from center to top or bottom. Sliding doors shall be equipped with two 4 wheel trolley trucks, 1 7/8"x 2 3/8" door track, pad lock lugs (cylinder lock optional), and door keeper assembly. Doors are self-closing and self-locking.

• Posts

  Shall be made of 2" x 2" x 14 gauge steel tubing. Base plates of 2" x 7" x 1/4" steel flat with two 7/16" round holes for anchoring, shall be welded to each tube. Posts are factory drilled with 1/2" holes to accept hardware for mounting panels.

• Hardware

  Shall be 3/8" standard thread grade two plated nuts and bolts. Floor anchors are 3/8" wedge type-provided.

• Finish

  Non-plated parts receive one coat of gray acrylic enamel. Touch up paint included with each shipment. Special / custom finishes available including powder coated & custom colors.

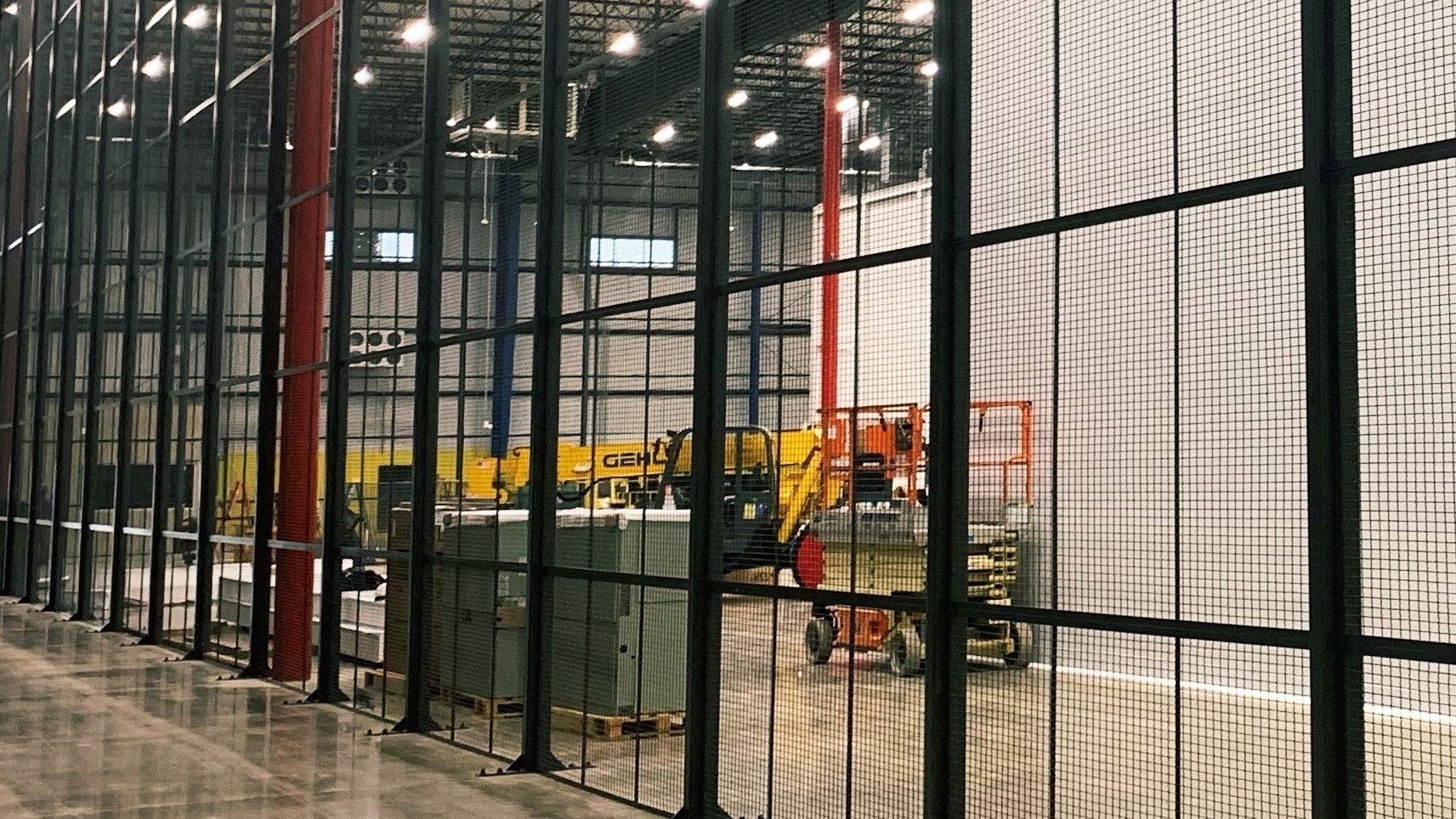

DEA Approved Cages and Storage Areas can be built to any size or unique requirement

Per 21 CFR 1301.72, the one-wall access control storage areas for Schedule III through V controlled substances require a high level of security. These installations have the following notable features:

• Self closing, self locking doors.
• Standard or custom locking options for access control available
• Wall and ceiling panels constructed of 10 gauge wire.
• Steel support posts 2" square.
• Posts have welded on base plates for lagging to the floor.
• Posts are set no more than ten feet apart.
• Walls have minimum 1 1/2" horizontal reinforcement at least every 60 inches.
• Standard mesh has 2" x 1" rectangular opening.
• Partition Panels mount flush to floor.
• Heavy 3/8" hardware non-accessible from the exterior.
• Panels stack to any height to work with your facility or floor plan layout.
• Clear spanned ceilings up to 35' across.
