12x12 ft. DEA-MiniCage™ is a DEA Approved Drug Storage Cage w/ Swinging Door

12x12 ft. DEA-MiniCage™ is a DEA Approved Drug Storage Cage w/ Swinging Door

Be the first to review this product

Our 12 x 12  x 8 DEA-MiniCage™ features a single, self closing door with key lock, panels, posts and shipping / freight to your facility.

WireCrafters Style 840 Partitions meet the US Drug Enforcement Administration's (DEA) requirements for physical security of Schedule III through V controlled substances as outlined in Title 21 CFR Sections1301.72-1301.76 physical security controls.

This drug storage application of WireCrafters wire partitions is ideally suited for pharmacies, pharmaceutical companies, medical facilities, distribution centers, record storage, drug warehouses, and much more.

  • Custom upgrades and options are available including doors, access control locks, and special colors / finishes

Call today for special pricing, custom design & build or built to your plans and specifications.

  • Specifications
  • Details
  • Product Description
  • Additional Information
  • Reviews
  • Product Tags
Base External Dimensions - 12'W x 12'D x 8'H
  • DEA Approved Cage for storage of Schedule III-IV Controlled Substances
  • Four Sided Cage with Ceiling Panel
  • Self closing, self locking 3'W x 7'H hinged door (Optional 5'W x 8'H Sliding Door)
  • Wall & ceiling panels constructed of 10 gauge wire
  • Steel support posts 2" square
  • Posts have welded on base plates for lagging to the floor
  • Posts are set no more than ten feet apart per DEA requirements
  • Walls have minimum 1-1/2" horizontal reinforcement at least every 60 inches
  • Standard mesh has 2"x1" rectangular opening
  • Panels mount flush to floor
  • Heavy 3/8" hardware non-accessible from the exterior
  • Additional Freight Charges Apply
  • Electric Strike or Mag Lock add-ons are optional
  • Also available in 10'H and 12'H standard sizes


*Custom sizes are common and available.  Email us at [email protected] to request pricing for a custom solution to meet your exact needs.

12x12 DEA MinCage is a Four-Wall Cage with Single Hinged Swing Door and Key Lock designed, built and installed to DEA Specs for Physical Security and Access Control

12' L x 12' W x 8 ' H with Ceiling Panel

  • Partition Panels

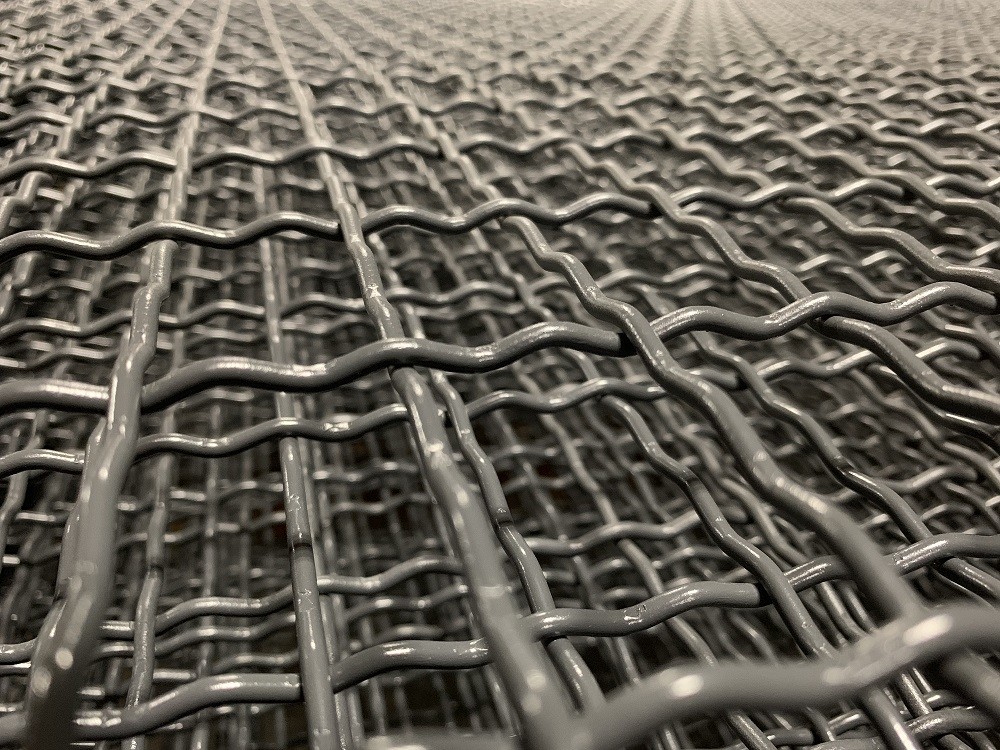

    Shall be 10gauge steel wire crimped and woven in to 2" x 1" opening rectangular mesh, securely welded into a frame of 1 1/4" x 1 1/4" x 1/8" steel angle factory punched with 7/8" x 7/16" slotted holes to accept 3/8" mounting hardware. Panels four to six feet wide shall have one 1/4" x 3/4" flat stiffener, wider panels receive two 1/4" x 3/4" stiffeners. All panels shall be fastened to posts with 3/8" x 3" plated bolts and nuts.


    • Hinged Doors

      Hinged shall be constructed of the same materials as the panels with two 1/4" x 3/4" horizontal stiffeners across the width, and two diagonal 1/4" x 3/4" stiffeners from center to the corner. Hinged doors shall be equipped with padlock lugs (cylinder lock optional), three 4" x 4" spun pin hinges, and pick plate/slam bar assembly. Doors are self-closing and self-locking.
  •  Posts
    • Shall be made of 2" x 2" x 14 gauge steel tubing. Base plates of 2" x 7" x 1/4" steel flat with two 7/16" round holes for anchoring, shall be welded to each tube. Posts are factory drilled with 1/2" holes to accept hardware for mounting panels.


  • Hardware

    Shall be 3/8" standard thread grade two plated nuts and bolts. Floor anchors are 3/8" wedge type-provided.


  • Finish

    Non-plated parts receive one coat of gray acrylic enamel. Touch up paint included with each shipment. Special / custom finishes available including powder coated & custom colors.


Our standard 12 x 12 DEA approved drug storage cage with self closing swing door will meet DEA specs for physical security of controlled substance ares for schedule III, IV and Schedule V drugs and substances.

Additional Information

Brand WireCrafters
